Name: Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2 9A3
Price: 50.00 USD
Availability: InStock

Inicio Productos Rodas de rectificación CNC

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	Shine Abrasives
Certificación:	ISO
Número de modelo:	4V2 1A1 14A2 9A3

Pago y Envío Términos:

Cantidad de orden mínima:	2 piezas
Precio:	FOB
Detalles de empaquetado:	uno en una caja de papel
Tiempo de entrega:	5 días laborables
Condiciones de pago:	LC, T/T
Capacidad de la fuente:	1000 PCS en una semana

Contacto

Descripción detallada del producto

Tipo de rueda:	Derecho	Espesor:	2-4 mm
Presión máxima:	5MPa	tamaño del cenador:	7/8 pulgada
Código HS:	6804211000	Material:	Óxido de aluminio / Carburo de silicio / Diamante / CBN
Eficiencia:	Rápido	Tipo:	Fila única
Uso:	Molienda	Durabilidad:	Alto
Diámetro de la rueda:	100 mm - 400 mm	Tipo de bono:	Vitrificado / Resina / Metal
Boresize:	12,7 mm - 32 mm	Tamaño:	4-12 pulgada
RPM máximas:	6000 rpm
Resaltar:	hybrid-bond diamond wheel for carbide drill bits , CNC grinding wheel for flute grinding , diamond grinding wheel with hybrid bond

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC).hybrid bond diamond wheel uses a diamond layer held by a mix of binders/materials (commonly a resin + metal/plastic matrix, or a bond system engineered to combine properties). For carbide drill bit fluting/fultting (I assume you mean flute grinding/fulting), these wheels are usually specified for profile/helix grinding and flute regrind where you need consistent geometry and smooth chip-breaking performance.

Technical Parameters:

Parameter	Detail
Package	Carton Box
Shape	Cup, Straight, Cylindrical, Etc.
Warranty	1 Year
Material	Carbon Steel
Max Pressure	5MPa
Bond	Vitrified, Resin, Metal, Etc.
Application	CNC Grinding, Flute Grinding, Gash Grinding, Relief Angle Grinding
Max Temperature	150℃
Size	4-12 Inch
Max Speed	100 m/s

Wheel contacts the carbide along the flute relief/profile.
CNC controls infeed, feed rate, wheel speed, and dwell time to shape flutes consistently.
Coolant/air blast removes swarf and controls temperature.
The hybrid bond is designed so the wheel maintains shape while still releasing fresh diamond when needed (depending on how it’s formulated.

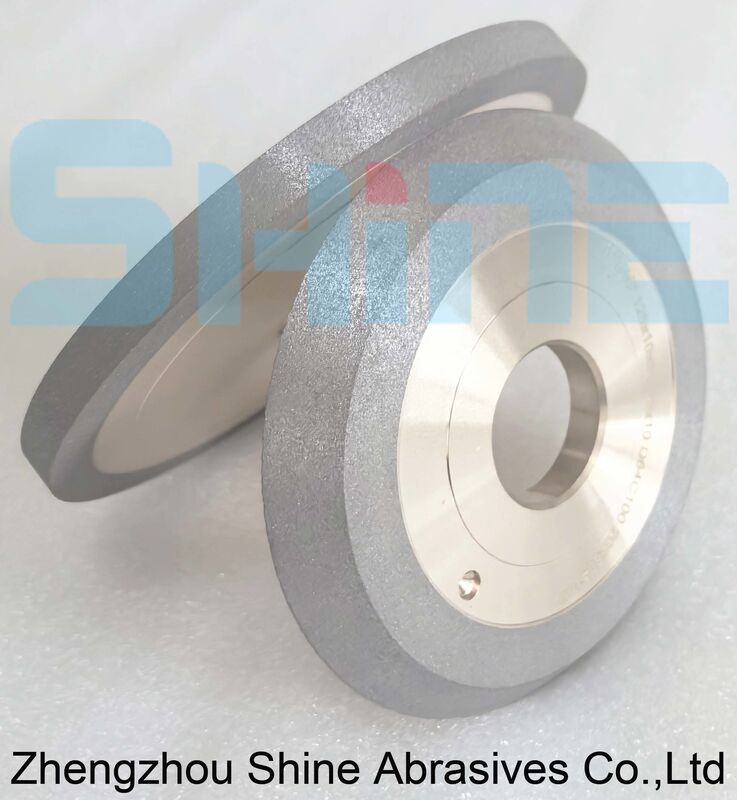

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC) 0
