Name: Hybrid bond CNC diamond wheel for high-performance flute grinding
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2 1v1
Price: 50.00 USD
Availability: InStock

Inicio Productos Rodas de rectificación CNC

Hybrid bond CNC diamond wheel for high-performance flute grinding

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	Shine Abrasives
Certificación:	ISO
Número de modelo:	4V2 1A1 14A2 1v1

Pago y Envío Términos:

Cantidad de orden mínima:	2 pcs
Precio:	FOB
Detalles de empaquetado:	uno en una caja de papel
Tiempo de entrega:	5 días de trabajo
Condiciones de pago:	L/C, T/T
Capacidad de la fuente:	1000 PCS en una semana

Contacto

Descripción detallada del producto

Solicitud:	Máquinas CNC	Velocidad:	6000 rpm
Color:	Plata	Presión máxima:	5MPA
Tamaño:	6 pulgadas	tamaño del cenador:	7/8 pulgada
Temperatura máxima:	150 °C	Tamaño del borde de diamante:	6x6m m
Tipo de obligación:	Híbrido	Vínculo:	Resina
Código HS:	6804211000	Eficiencia:	RÁPIDO
Velocidad máxima:	100m/s	Rpm máximo:	6000 rpm
Dureza:	Alto
Resaltar:	Hybrid bond CNC diamond wheel , CNC flute grinding wheel , high-performance diamond grinding wheel

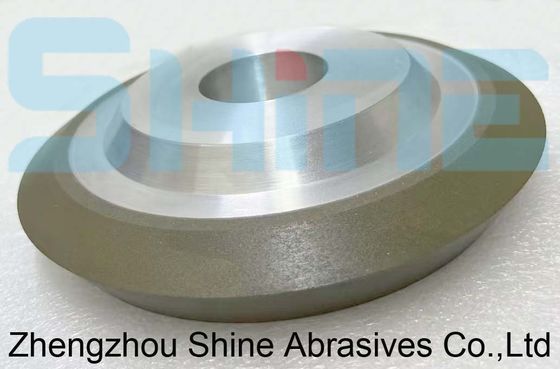

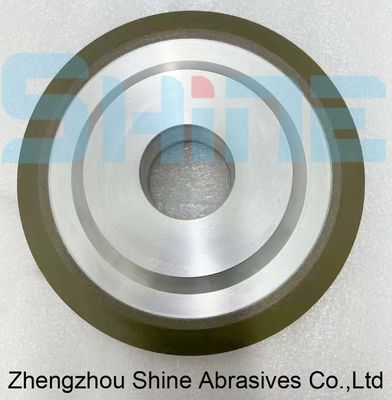

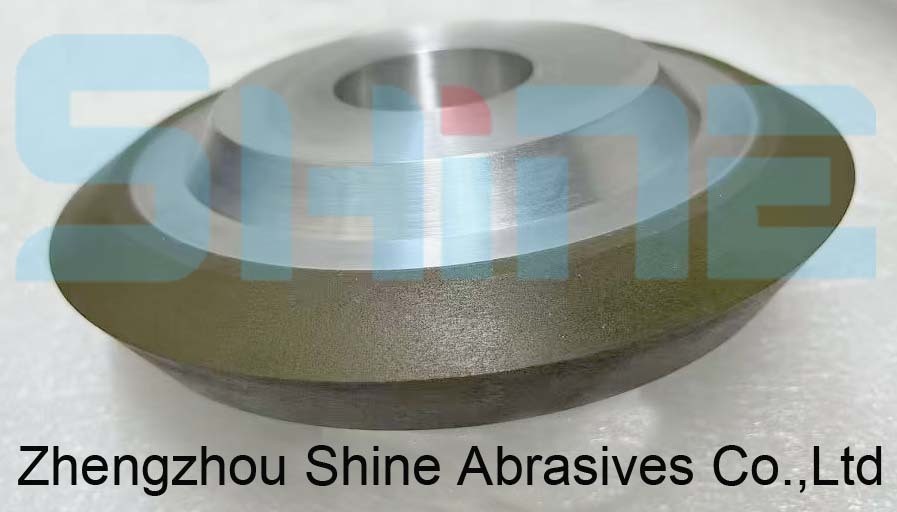

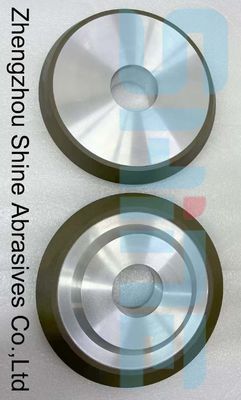

Hybrid bond CNC diamond wheel for high-performance flute grinding

Hybrid bond CNC diamond wheel for high-performance flute grinding.Hybrid bond is Resin Bond, Metal Bond, and or processing methods to create a Hybrid that encompasses enhanced properties to deliver high performance results for some of manufacturing’s toughest grinding applications.

Wheel sizes form:

Diameter of D	Diamond depth of U	R	X	H
50mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
75mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
100mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
125mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
150mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
175mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
200mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize

Others sizes are available per requested.

*Grinding, PCD, PCBN, CVD, MCD, hard alloy and other cutting tools

*Bonding agents: ceramic bonding agents, resin bonding agents, metal bonding agents

*The particle size can reach up to 10000#

*Cutting edge quality less than 5 microns

*Provide dressing wheels to trim PCD grinding wheels
*Precision grinding: capable of achieving high accuracy and surface finish
*The bowl is mainly used for tool sharpening and surface milling, suitable for grinding metal and non-metal hard and brittle material with low iron content.

Hybrid bond CNC diamond wheel for high-performance flute grinding 0
